Shanghai Shenman universal joint dynamic balancing machine is suitable for 5kG-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body balance correction and testing.
Universal joint dynamic balancing machine adopts universal coupling drive, can obtain a variety of balance speed, and high precision, easy to operate, high efficiency.

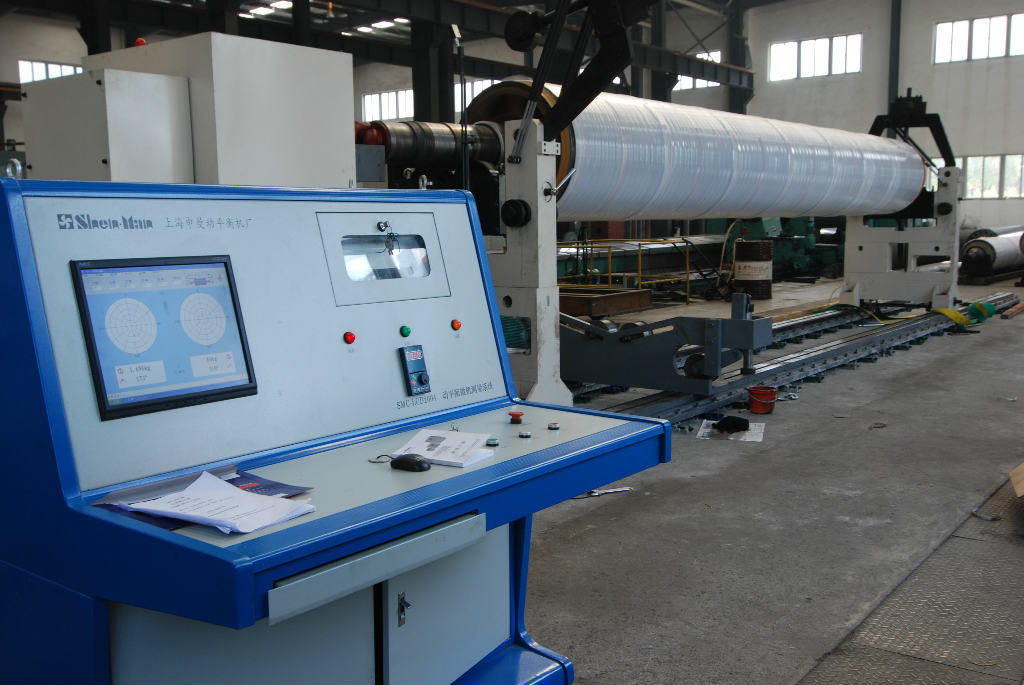

SB-19 (50tons) Universal Joint Drive Balancer is one of the company's universal joint drive series balancing machine，it is mainly used in large motor, ceramic machinery, roller, glue stick, fan, shaft and other rotating body workpiece balance correction and testing.
Measurement system adopt HSC microcomputermeasurement system, speed, value, phase all with digital display, six types of rotor can be optional, intuitive display, and memory display, unbalance directly with "G" display.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| SB-19(50tons) Universal Joint Balancing Machine Technical Parameters: | |
| 1. Maximum mass of workpiece（kg） | 50000 |
| 2. Maximum diameter of work（mm） | 3500 |
| 3. bearing diameter range（mm） | 65-250,250-400 |
| （Min)500 |
| 5. Maximum distance between end face of coupling and right bearing seat（mm) | 3000(a section） |
| 6. Balancing speed（r/min） | 180-1200（frequency control of motor speed） |
| 7. Motor Power（kw） | 90 |
| 8. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | ≤1 |
| 9. Unbalance reduction ratio URR(%) | ≥95 |
| 10. Power Supply | three-phase/380V ; 50HZ |
| 11. Cardan shaft | 8000 |
| 12.12. Equipped with control cabinet | Computer LCD |
| 13. Bearing in rolling frame | NSK（Japan） |
| 14. speeder | Frequency conversion speed regulating device |
