SA-8(500~1000kg) This is the company's own design and manufacture of hard bearing belt drive balancing machine. It is widely used in large motor, ceramic machinery, roller, glue stick, fan, shaft and pump and other rotary body workpiece balance correction.
This machine adopts the belt drive, without the residual unbalance of the universal coupling itself and the unbalance error caused by the connecting fixture, so it really ensures the balance quality of the workpiece, improve the balance accuracy, and the belt drive is convenient to load and unload, high efficiency.
Measurement system adopts SMC microcomputer measurement system. Speed, value and phase are all digitally displayed. Unbalance is directly displayed by "G".
Six types of rotor can be arbitrarily selected, directly with digital input of various parameters, after a start can correctly display the value of the unbalance of the workpiece (G) and phase, and can store data and display intuitive.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| SA-8(500~1000kg) Belt Drive Balancing Machine Technical Parameters: | |
| 1. range of workpiece mass(kg) | 20~500~1000(kg) |
| 2. Maximum diameter of work（mm） | 1450(mm) |
| 3. Range of workpiece shaft diameter | 15~240m |
| 4. Distance between two supports | 300~2600mm |
| 5. balancing speed（r/min） | 300~2500r/min |
| 6. Diameter of belt drive | 40~400mm |
| 7. Motor Power(kw） | 5.5kw |
8. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | 1g·mm/kg |
| 9. Unbalance reduction ratio URR(%) | 85% |

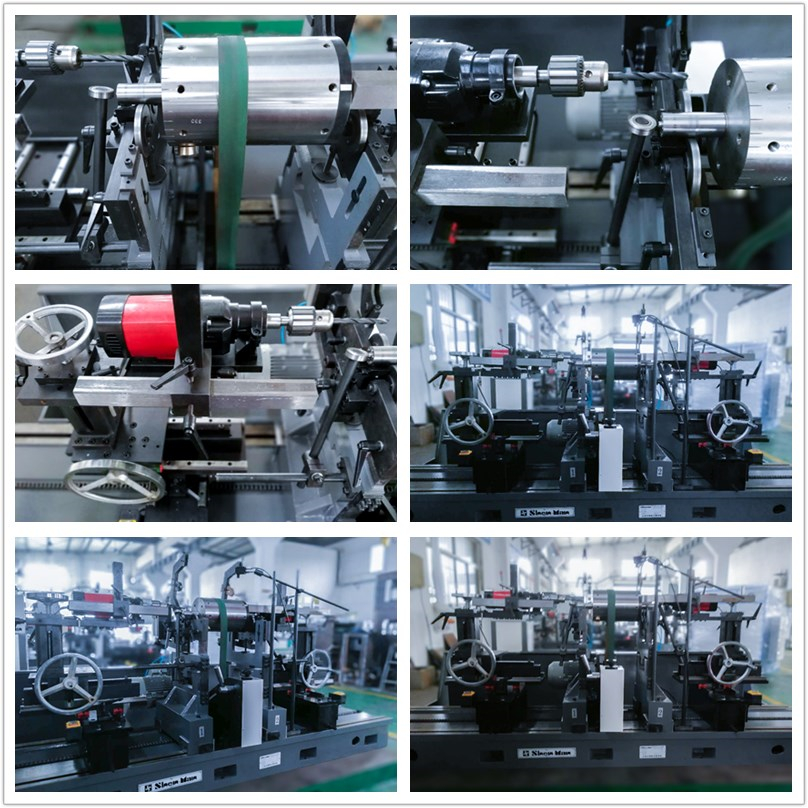

| A drill press used to remove weight |
