On-site dynamic balancing technology has been widely used in industrial and mining enterprises, the on-site unbalanced technology can be used while the original installation conditions of the equipment remain unchanged.
It can solve the malfunction caused by the dynamic balance of equipment or shaft in a short time, thus, the cost of disassembly, transportation, installation and maintenance is greatly saved.

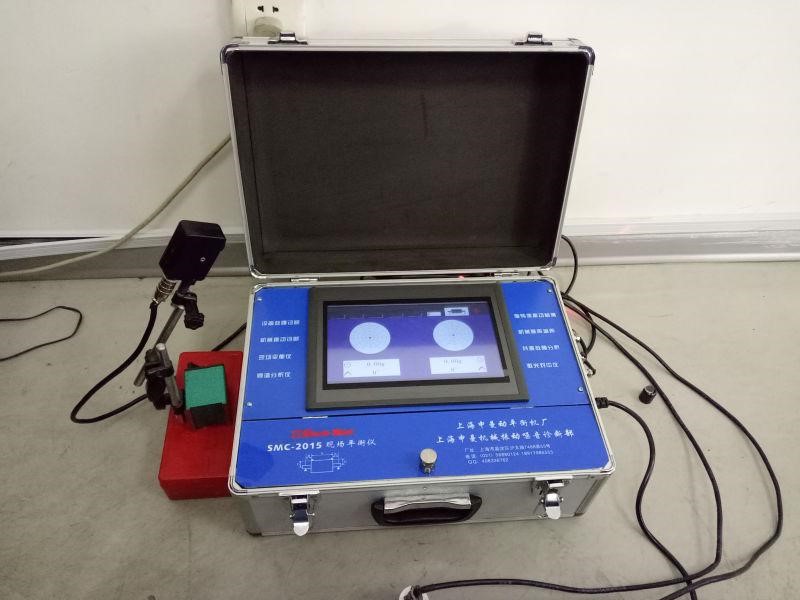

SMC-2015 Portable field dynamic balance instrument is a measuring instrument, It is more convenient to carry than ordinary horizontal and vertical balancing machine. The volume is greatly reduced，Without relying on external power transmission, the dynamic balance data can be diagnosed as long as the equipment is in operation.
You can quickly determine the running status of the equipment in the field, By adopting the influence coefficient method for calibration，the system will automatically calculate the size and Angle of the weight to be added or subtracted, eliminate unbalance on equipment or shaft by dynamic balancing.
Only need rotational speed signal and both ends vibration signal access is good. simple connection, not subject to any space restrictions。The instrument can measure single-sided balance and double-sided balance according to the 602 computer measuring system.
Fan, motor, impeller, spindle and other rotating objects are the field balance instrument measurement objects.
The function of the field dynamic balancer:
2. The real-time data of dynamic balance measurement can be printed completely as required.
3. The method of influence coefficient is adopted for calibration and the operation is simple.
4. According to the equipment needs can be used single side or double side balance.
5. It is recommended that the device be stored indoors in a ventilated and dry place, which should be anti-corrosion and moisture-proof, and avoid outdoor sunlight.
Portable field dynamic balance instrument, vibration analyzer product characteristics：
2. Small volume, easy to carry.
3. LCD touch screen, easy to use.
4. Built-in CAS-602 computer operating system.
5. Plug-in power supply, two phase power supply.
6. Sensitive measurement function, data results at a glance.SMC-2015X
| |
| 1. Workpiece mass range（kg） | 200-40000 |
| 2. Diameter range of the workpiece（mm） | 200-5000 |
| 3. Supporting method | Bearing seat bearing and With bearing |
| 4. Minimum distance between two supporting centers（mm） | 500 |
| 6. Maximum distance between two supports | 根据工件长度而定 |
| 7. The power configuration | 220V |
| 8. minimum achievable residual unbalanceemar(g﹒mm/kg) | 5 |
| 9. unbalance reduction ratio URR(%) | ≥90 |
| 10. The electrical measurement adopts microcomputer industrial control system, and the software is CAS-602 balance machine inspection software | |
| 11. Equipped with two high sensitivity magnetic sensors for measurement | |
| 12. Equipped with photoelectric receiver | |
| 13. drive mode | Provided by the purchaser |
| 14. Weight of equipment | 6kg |
