details
Shanghai Shenman automatic balancing machine includes many products: flywheel automatic balancing machine, brake disc automatic balancing machine, motor rotor automatic balancing machine, vertical drilling automatic balancing machine, crankshaft automatic balancing machine, brake drum automatic balancing machine, with one-button automatic operation and equipment calibration, which makes the operation of the equipment more concise and has integrated equipment, equipped with safety protection device. Make it safer.

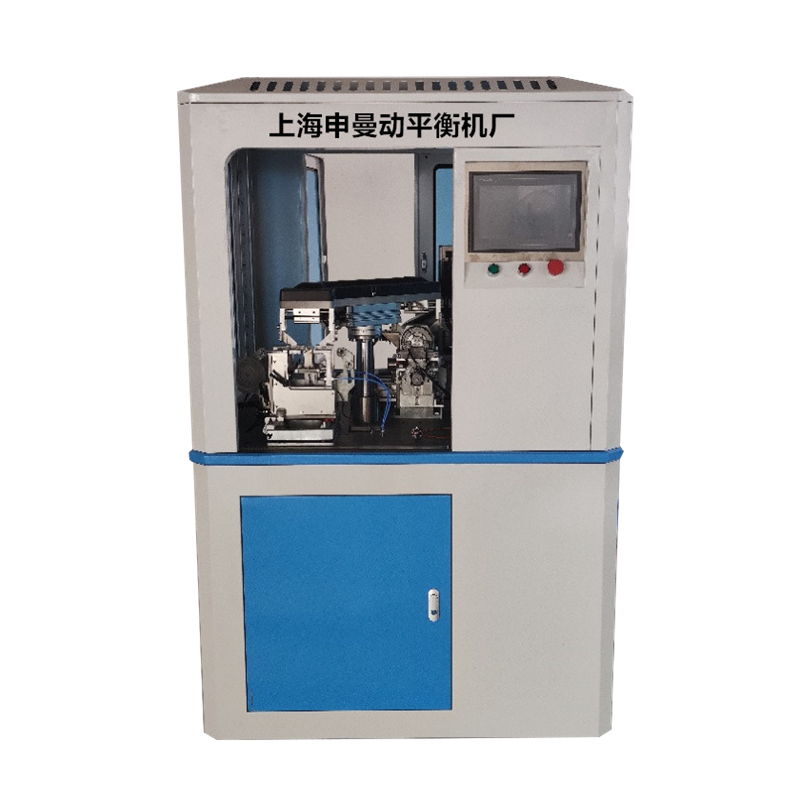

Features of two-station automatic balancer:
Balancing is done once and only one person is needed to operate the machine.
The production rhythm is fast and the first reduction rate is high.
In terms of product replacement, only the product fixture and sensor position need to be changed.
Man-machine interface with memory function for capacity and real-time production information.
Steel structure design, high service life.
Technical parameters of two-station automatic balancer | |
| Specifications for using power supply | TN-S（three-phase, five-wire）≥3KWA、B、C、N、PE |
| Specifications for compressed air supply | 0.4-0.8MPa non-condensing water |
| Modifications | "T" type milling cutter, coaxial milling cutter shaft parallel to workpiece shaft |
| Milling power | 1.5KW×2 Synchronous milling with division of work stations at both ends |
| Scope of application | （16-55）mm×（60-170） |
| Using cutting tools | 40mm×（3-8）mm depending on workpiece |
| Test speed | 1000-3000r/min |
| Appearance Dimensions | （L×W×H）2100mm×1200mm×1700mm |
| Weight | Approximately 1.5T |
