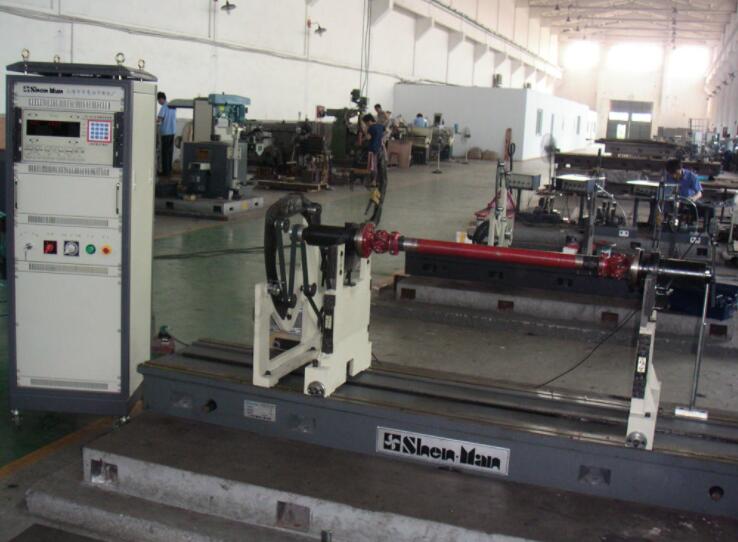

Shanghai Shenman 10-100KG multi-function propeller shaft balancer is suitable for automobiles and trains. It is an ideal equipment for checking the balance of the propeller shaft of trains. The double-sided dynamic balance of various automobiles can be corrected by replacing the fixture for mounting workpieces. With advanced balance measurement software, industrial control computer and control cabinet, it is suitable for all kinds of automobile transmission shafts.
Features of 10-100KG multi-function propeller shaft balancer:
1. The length of machine bed can be adjusted according to user's requirements.
2. Balance angle automatic tracking function
3. Using Microcomputer Digital Display
4. Automatic Parking Positioning Function
5. Vector Angle Decomposition Function
| Technical specifications of 10~100KG multi-function propeller shaft balancer | |
| Workpiece quality range | 10 ~100 Kg |
| Maximum length of workpiece | 2600mm (standard) lengthened according to user needs |
| Swing frame structure | Hard-supported pendulum |
| Balanced speed r/min | 1600/3200/2400/4800 Variable Frequency Speed Regulation |
| Minimum residual imbalance | ≤5g.cm/kg |
| Reduction rate of imbalance | ≥95% |
| Motor Power | 2 / 2.4kw |
| Speed regulation mode | frequency control |
| Driving mode | Universal joint (triple pendulum) |
| Maximum distance from end face of coupling to centre of right support | 1500mm |
