details
Shanghai Shenman one-sided vertical balancing machine is a balancing machine with fast development speed and wide application range in the industry. It is mainly used for balancing correction of various disc-shaped parts such as flywheel, large impeller, chuck, large clutch, pulley, strong wind blade, etc.

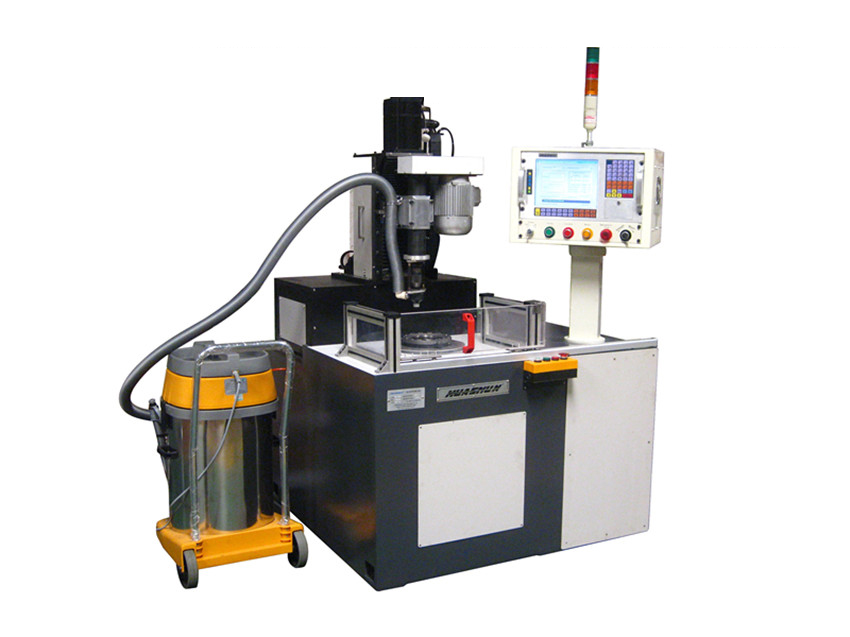

(100kg) SC-6 Vacuum Cleaner Vertical Balancer
Application range:
Disc workpieces such as fans, fans, flywheels, impellers, chucks, brakes, clutches, brake drums, grinding wheels, saw blades, pulleys, etc.
Product advantages:
With vacuum cleaner unit
High accuracy and efficiency
Easy operation, high sensitivity and stability
With functions of memory, display, printing and fixture compensation
All digital display of magnitude, speed and phase
| Technical parameters of SC-6 vertical balancer with vacuum cleaner | |
| Maximum mass of workpiece (kg) | 100 |
| Maximum diameter of workpiece (mm) | 900 |
| Maximum height of workpiece (mm) | 200 |
| Electric Box | Microcomputer Digital Display |
| Motor Power (kw) | 3 |
| Minimum available residual imbalance EMAR (g.mm/kg) | ≤5 |
| Unbalanced reduction rate URR (%) | ≥95% |
| Power supply configuration | three-phase/380V; 50HZ |
| Balanced speed (r/min) | 700 |
| Vacuum cleaner parameters | |
| flow | 3.3(m3/min) |
| Dust drum flow rate | 30L |
| Electric machinery | Single phase 3 × 1000W |
| True Tolerance | ≥22kpa |
