Shanghai Shenman universal joint dynamic balancing machine is suitable for 5kG-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body balance correction and testing. Universal joint dynamic balancing machine adopts universal coupling drive, can obtain a variety of balance speed, and high precision, easy to operate, high efficiency.

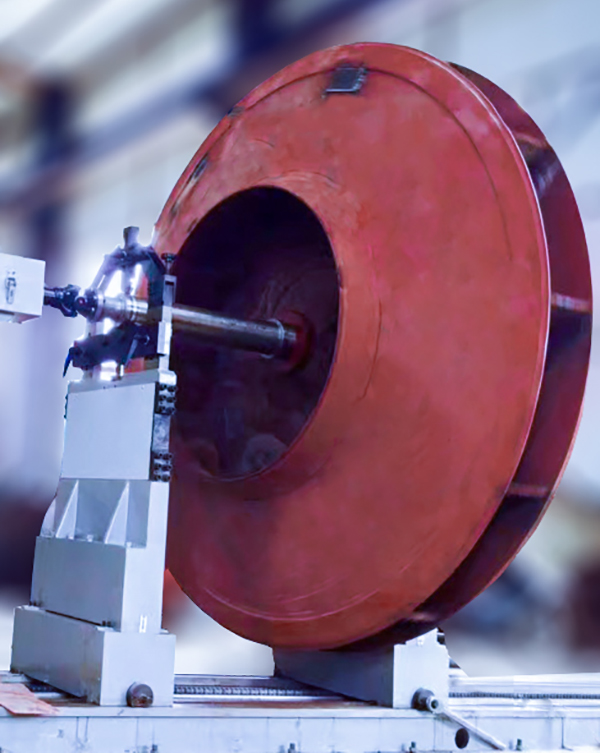

(500KG) Fan impeller special universal joint balancing machine is one of the company's universal joint drive series balancing machine，it is mainly used in large motor, ceramic machinery, roller, glue stick, fan, shaft and other rotating body workpiece balance correction and testing. Measurement system Adopt SMC microcomputer measurement system, speed, value, phase all with digital display, six types of rotor can be optional, intuitive display, and memory display, unbalance directly with "G" display.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| (500kg) Fan impeller special universal joint balancing machine Technical Parameters: | |
| 1. range of workpiece mass(kg) | 500 |
| 2. Maximum diameter of work（mm） | |
| 3. Range of workpiece shaft diameter | 10~180 |
| 100 |
| 5. balancing speed（r/min） | 350/530 690/1040 r/min |
6. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | 1g·mm/kg |
| 7. Unbalance reduction ratio URR(%) | 90% |
| 8. Maximum distance between end face of coupling and center of right support seat (mm) | 1600 |
