Shanghai Shenman universal joint dynamic balancing machine is suitable for 5kG-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body balance correction and testing. Universal joint dynamic balancing machine adopts universal coupling drive, can obtain a variety of balance speed, and high precision, easy to operate, high efficiency.

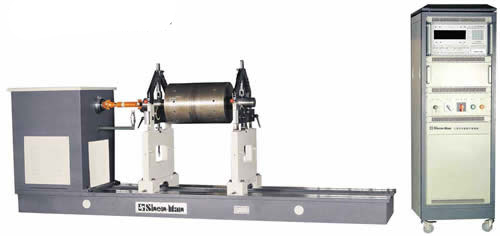

SB-9B (1000KG) Universal Joint Balancing Machine is one of the company's universal joint drive series balancing machine, it is mainly used in large motor, ceramic machinery, roller, glue stick, fan, printing machinery, shaft and other rotating body workpiece balance correction and testing.
This machine adopts universal coupling drive, can realize stepless speed regulation, and high precision, high efficiency, easy to operate.
Measurement system adopt SMC microcomputer measurement system, speed, value, phase all with digital display, six types of rotor can be optional, intuitive display, and memory display, unbalance directly with "G" display.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| (1000KG)SB-9B Universal Joint Balancing Machine Technical Parameters: | |
| 1. Maximum mass of workpiece（kg） | 1000 |
| 2. Maximum diameter of work（mm） | 1600 |
| 3. bearing diameter range（mm） | 15-240 |
| (Min) 300 |
| 5. Maximum distance between end face of coupling and right bearing seat（mm） | 3000 |
| 6. Balancing speed（r/min） | 180-1200（step less speed regulating） |
| 7. Motor Power（kw） | 4 |
| 8. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | ≤1 |
| 9. Unbalance reduction ratio URR(%) | ≥95 |
| 10. Power Supply | three-phase/380V ; 50HZ |
| 11. Cardan shaft | 300 |
| 12. Equipped with vertical control cabinet | Microcomputer digital display (upgradable liquid crystal industrial control system) |
| 13. Bearing in rolling frame | NSK（Japan） |
| 14. speeder | Equipped with frequency control device |
