Shanghai SHENMAN belt drive dynamic balancer is suitable for 16-6000kg rotor dynamic balance correction. There is no universal coupling itself remaining unbalance and the unbalance error caused by the joint fixture, it really ensures the balance of the quality of the workpiece, improve the balance accuracy, and the belt drive convenient loading and unloading, thus improving the work efficiency.

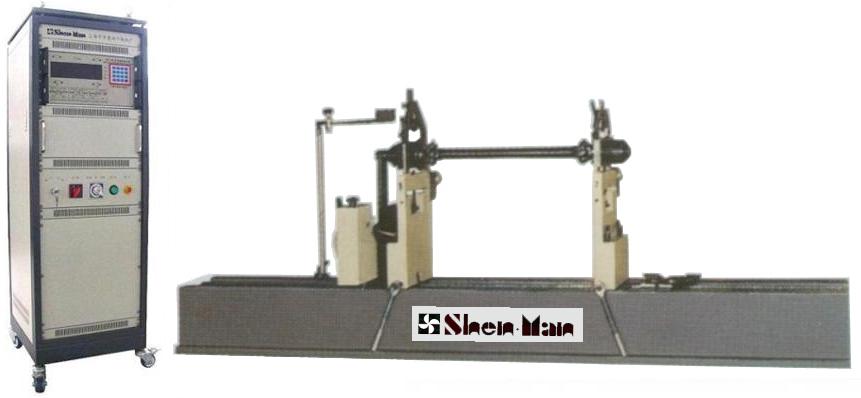

SA-6（160kg） This is the company's own design and manufacture of hard bearing belt drive balancing machine. It is widely used in medium motor rotor, machine tool spindle, fan, wind wheel, ventilation equipment, ceramic machinery, roller, glue stick, equal rotation body workpiece balance correction.
Measurement system adopts SMC microcomputer measurement system. Speed, value and phase are all digitally displayed. Unbalance is directly displayed by "G". Six types of rotor can be arbitrarily selected, directly with digital input of various parameters, after a start can correctly display the value of the unbalance of the workpiece (G) and phase, and can store data and display intuitive. The belt is adopted as the transmission mode, so it is easy to load and unload and fast to start.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| SA-6（160kg）Hard Bearing Belt Drive Balancing Machine Technical Parameters: | |
| 1. Maximum mass of workpiece（kg） | 160 |
| 2. Maximum diameter of work（mm） | 1260 |
| 3. Axle diameter range at belt drive（mm） | 20-450 |
| 4. Distance between two supports（mm） | 1 |
| 5. Range of bearing diameter（mm） | 10-180 |
| 6. Balancing speed（r/min） | Drag the diameter to 100mm 860/1230/1720/2460 |
| 7. Motor Power（kw） | 1.1/0.85 |
| 8. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | ≤0.5 |
| 9. Unbalance reduction ratio URR(%) | ≥90 |
| 10. Power Supply | three-phase/380V ; 50HZ |
| 11. Equipped with independent control cabinet | |
| 12. Electrical measuring box | microcomputer digital display |
| 13.滚轮架中轴承 | NSK(Janpanese） |
| SA-6-T01 Multi-functionhard bearingTechnical Parameters: | |
| 1. Range of workpiece mass | 160 |
| 2. Maximum diameter of work (mm) | 1260 |
| 3. Range of workpiece shaft diameter | 10 ~90 /90~180 |
| 4. Distance between two supports | 170 ~2200 |
| 5. Balancing speed（r/min） | 300~2500 |
| 6. Diameter of belt drive (mm) | 20~450 |
| 7. Motor Power (kw） | 1.1/0.85 |
8. The minimum residual unbalance can be achieved emar(g﹒mm/kg) | 0.5 g·mm/kg |
| 9. Unbalance reduction ratio URR(%) | 90 % |
