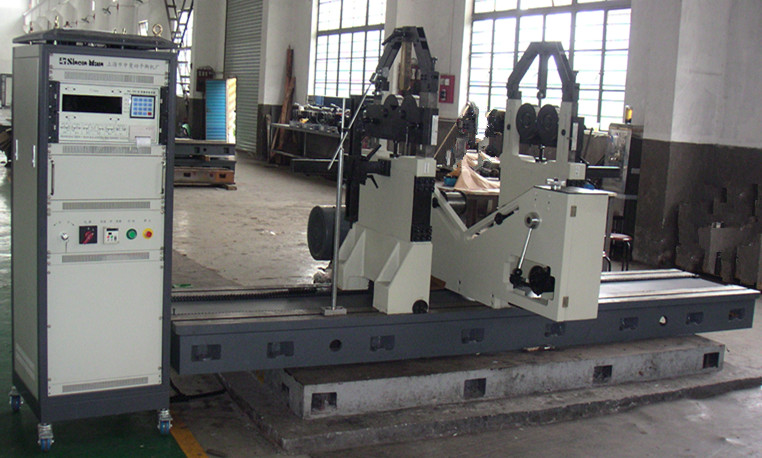

SA-12(6000kg) hard bearing balancing machine is one of the company's belt drive series balancing machine. It is used in large motor, ceramic machinery, roller, glue stick, fan, shaft and pump and other rotary body workpiece balance correction.
Measurement system adopts SMC microcomputer measurement system. Speed, value and phase are all digitally displayed. Unbalance is directly displayed by "G". Six types of rotor can be arbitrarily selected, directly with digital input of various parameters, after a start can correctly display the value of the unbalance of the workpiece (G) and phase, and can store data and display intuitive.
The electromechanical transducer adopts piezoelectric sensor, which has the advantages of small volume, large output and high sensitivity.
| SA-12(6000kg) hard bearing Belt Drive balancing machine Technical Parameters: | ||
| 1. Maximum mass of workpiece（kg） | 6000 | |
| 2. Maximum diameter of work（mm） | 2100-2400-3000（alternative） | |
| 3. Range of bearing diameter（mm） | 25～180；180～380 | |
| 4. Distance between two supports（mm） | 350～3300（alternative） | |
| 5. Axle diameter range at belt drive（mm） | 100～900 | |
| 6. Balancing speed（r/min） | 300-1500（stepless speed variation） | |
| 7.Motor Power（kw） | 15 | |
8.
| 0.5 | |
| 9. Unbalance reduction ratio URR(%) | ≥90 | |
| 10. Power Supply | three-phase/380V ; 50HZ | |
| 11. Equipped with independent vertical control cabinet | ||
| 12. Electrical measuring box | Adopt microcomputer digital display | |
| 13. Equipped with frequency control device | Sanken（Japan） | |
