HM-16C Dynamic balance analyzer product features:
● Independent operating system, but also has the measurement characteristics of common balancing machine.
● With spectrum analysis, vibration detection, data storage and other functions, more efficient use.
● On-site detection, diagnosis, calculation results at a glance.
● Rechargeable power supply, built-in battery is not restricted by the environment and power supply.
● The volume and matching accessories are optimized, small in size and easy to carry.
● Built-in language switching function, Chinese and English operation, the instrument is simple to use.
HM-16C Dynamic balance analyzer product function and performance description：
1. Have data storage function,can do program upgrade/data storage/print reports/language conversion.
2. It has the function of balance correction of various rotors before assembly and on - line balance correction after assembly.
3. Suitable for all kinds of mechanical or motor rotor on-line dynamic balance correction，monitoring，analysis.
4. The frequency spectrum is used to analyze the vibration of the rotor so that the vibration state can be truly presented.
5. It can be used to correct/monitor/analyze the dynamic balance of single or double sides of various rotors.
6. It can carry out vibration unit conversion, vibration tolerance value setting/power state presentation。
7. It can be corrected by means of adding balance mass or ridding unbalance mass.
8. Built - in ISO1940 rotor balance level calculation.
9. Added touch type LCD screen.
10. It can distribute the hole position and calculate the depth of the hole.
11. New rechargeable lithium battery/super standby time.
12. sensor detection function.
13. action Disk USB Flash Disk/ compact mini easy to carry.add indicator light.
14.it has indicator light.
15. it has adjustable handle.
16. three dynamic balancing functions.
| HM-16C Dynamic balance analyzer technical parameters: | |
| measurement range | Acceleration (G):0.0001—25g |
| speed（mm/s） | 0.01—1,300mm/s |
| displacement（μm） | 0.01—6,000μm(@1800rpm) |
| Accuracy of measurement | 0.1mG，0.01mm/s, 0.1μm(@1800rpm) |
| Range of Rotational speed measurement | 0.1° |
| Precision of phase Angle measurement | 100-60,000rpm |
| Vibration measuring unit | Acceleration(G)：0-P Speed(MM/S)：0-P displacement(μm)：P-P |
| Rotational speed sensing mode | Fiber optic sensor |
| 6cm |
| Vibration sensing device | akcelerometr 100mV/g |
| CPU | Vortex X300MHz(32) bit high speed processor |
| display device | 320*240 dot LCD/LED high brightness backlight/multi-touch panel |
operation temperature | 0°C-50°C |
| Power Consumption | 7W |
| Electric storage battery | Li-On rechargeable |
| Power Supply | 100-240VAC Adaptor 50/60Hz |
| Host Dimensions | 210*190*45(mm) |
| The host weight | 1.2kg（Battery included） |
| The storage interface | USB2.0埠*1/USB action drive |

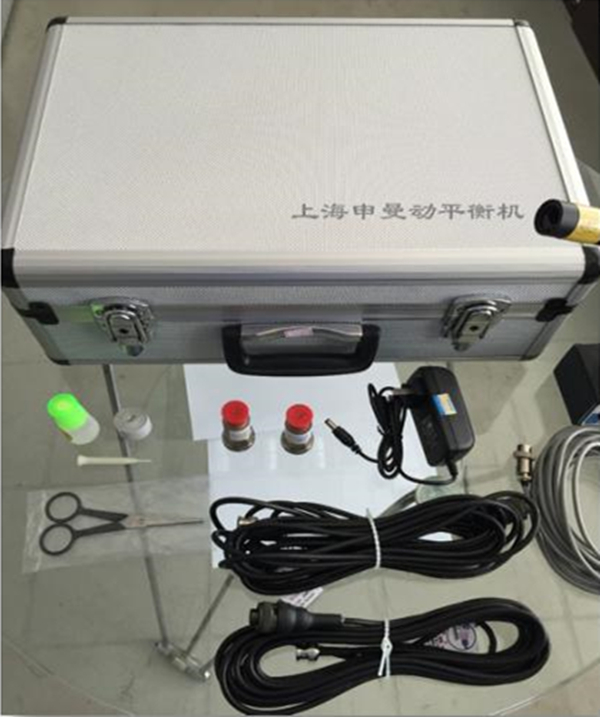

| mountings | akcelerometr*2，MB504 magnetic base*2 |
| fiber optic sensor/laser senso（Optional）*1 | |
| Power Supplier*1 (6m)，signal wire*2 (6m) | |
| Attachment | Scissors*1, reflective stickers, glue, carrying case ×1, Operation manual *1 |
